Ricoh fi-8170 Sheetfed Scanner

Part Number PA03810-B051

Ricoh fi-8170

Best Imaging Industry Solution Provider

Supports a wide range of scan needs with state-of-art feeding technology

The scanner comes with reliable paper feeding, facilitating a seamless workflow. Scan faster without interruptions to help boost organizational efficiency.

Scans large volumes with “Automatic Separation Control”

The “Automatic Separation Control” optimizes paper feed to match the number of sheets loaded, and allows stable paper feeding even when performing large volume scans. Interruptions arising from paper misfeeds at high speed scans of 70 ppm, can be avoided.

Evolved paper protection function combines sound and image technologies

In addition to iSOP* Technology that halts scanning heavily-skewed and stapled documents at abnormal noise detection, the “Image Monitoring” technology acts as a paper protection.
A technology that performs real-time image monitoring to keep document safe when angles exceed the safe range to assist users with accurate and comfortable scanning.

*Intelligent Sonic Paper Protection.

Supports scanning of wide range of documents

The scanner handles various types of documents to enable all scans with a single scanner. The Manual Feed Mode enables reading of copy forms, glued-on documents and bi-folded A3 documents. Passports and booklets up to thicknesses of 7 mm can be read as well, without carrier sheets.

Since the scanner identifies the presence of thick plastic cards and labelled or barcoded documents, it excludes multi-feed errors, making simultaneous scanning of cards and paper document possible even when multi-feed detection is ON. Users are able to set documents together and continue scanning without interruption.

Optimized high-quality image data for business use

PFU Clear Image Capture

Combining the new CIS sensor with the GI image processing engine suppresses the occurrence of color shifts.
“PFU Clear Image Capture” produces high definition images for data extraction while keeping power consumption to the minimum and reduces startup times.

Avoid image loss with Overscan Control function

Three sensors accurately detect tips of documents and extend scanning area automatically, ensuring that sufficient margins are secured around the scanned documents. An accurate image data can be generated without defects even when original documents are skewed. Users can save the time to re-scan documents.

Increased usability and flexibility to scan in any environment

Stress-free operation with the Color LCD display

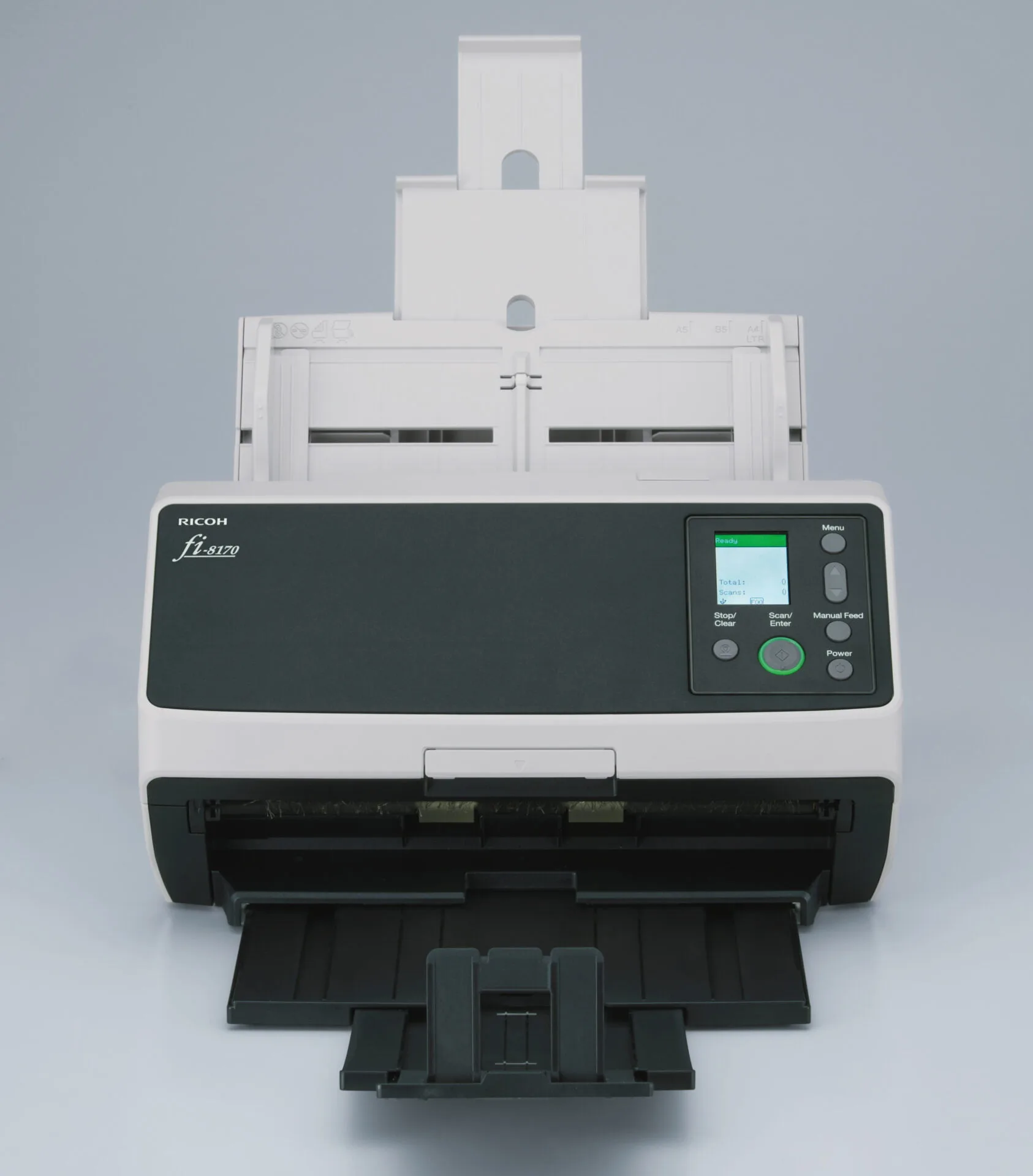

Equipped with a color LCD panel, users can view status information and select setting configuration more easily. Use of color enables intuitive operation, for reduced human errors.

Keep documents in order with the Stacker Supporter

The Stacker Supporter keeps documents in order, even when scanning mixed batches containing small pieces of paper that tend to fly out of the document tray. Scanned documents are easy to retrieve, reducing time spent on post-scan organization.

Supports various operation modes according to the customer’s environment

The scanner supports both USB and LAN connectivity so that it can be used not only near the computer but also in various places under the network environment.
By using server software “PaperStream NX Manager*1, it is possible to scan in environments without the PC or even from a Web application running on a thin client terminal.

*1 A Windows Client Access License (CAL) is required for each scanner device or user.

Advanced software improves workflow before and after scanning

The functions of PaperStream IP and PaperStream Capture, scanner driver and capture software for fi Series respectively, improves operators’ overall productivity, by reducing the number of operations before and after scanning.

PaperStream Series software is easier to use with expanded functions

With “Setting Assistant” on PaperStream Capture, frequent manual operations like deleting blank pages or correcting page orientations, can be reduced by following the suggestions that pop up in the software notifications.
Options are available for added flexibility.
– For the customers requiring advanced workflow, PaperStream Capture Pro, at a fee.
– For customers with simple and basic operation needs, PaperStream ClickScan.

Quick MRZ Recognition

For passport and ID card scanning, personal information such as full name, document number, nationality, contained in the MRZ* (Machine Readable Zone), can be extracted for efficient entry of customer information.

*Supports recognition of MRZ on passports and ID cards, as defined by the ICAO (International Civil Aviation Organization). Passport MRZ layout is defined as two rows of 44 characters each (Doc 9303 TD3 format). ID card MRZ layout defined as three rows of 30 characters (TD1 format) or as two rows of 36 characters (TD2 format).

Scanning Speed Simplex: 70 ppm (200 / 300 dpi) Duplex: 140 ipm (200 / 300 dpi)
Maximum Document Size 216 x 355.6 mm
Minimum Document Size 48 x 50 mm (1.9 x 2.0")

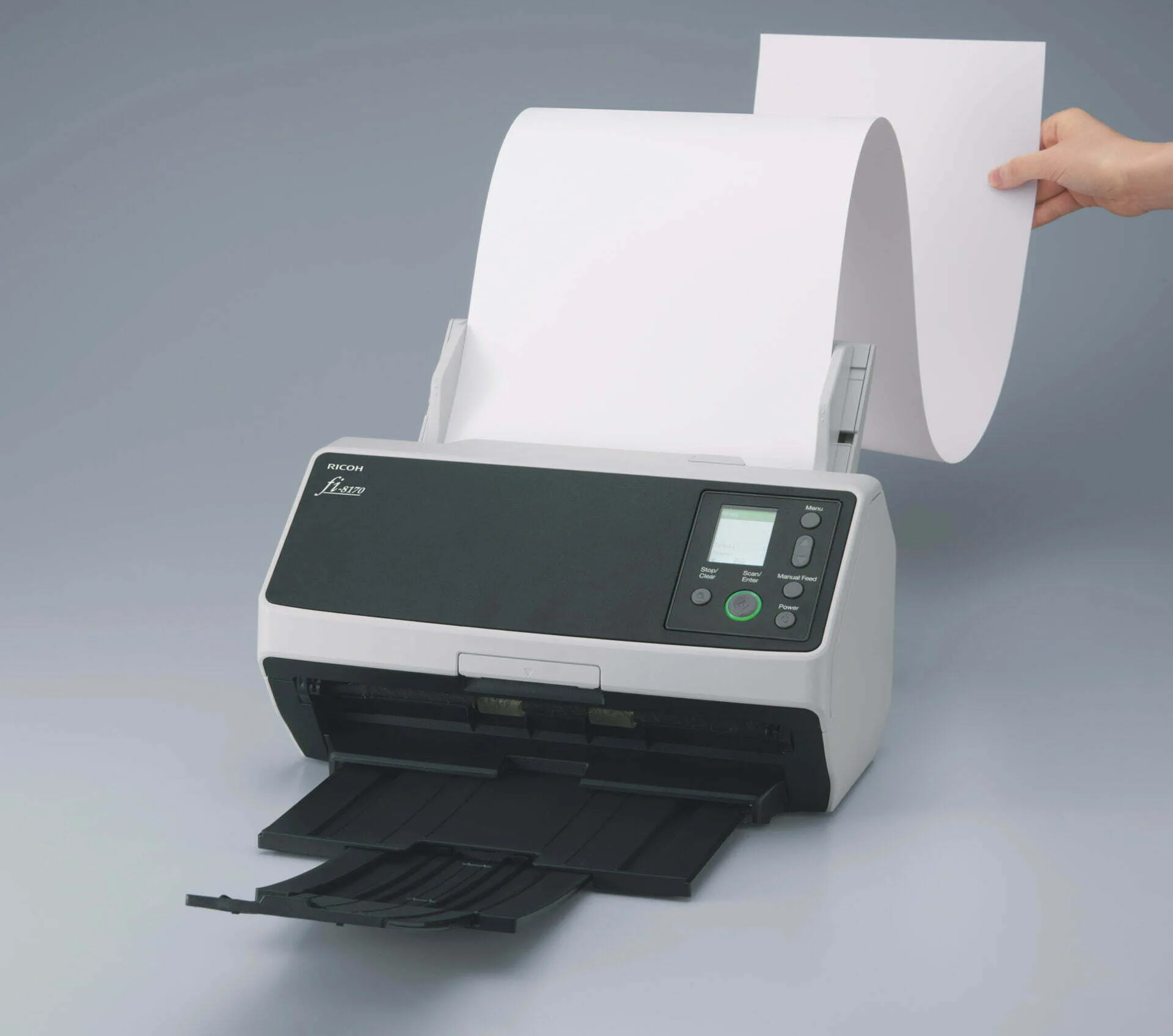

Long Paper Scanning 6,096 mm (240 ")
ADF Capacity 100 x A4 80 g/m² or 100 x Letter 20 lb
Interface USB 3.2 Gen 1/ 3.0 / 2.0 / 1.1 (Type-B Connector) 10BASE-T/100BASE-TX/1000BASE-T RJ-45
Daily Duty Cycle 10,000 Sheets
Image processing function Advanced DTC, Automatic Color Detection, Automatic Profile Selection, Automatic Rotation, Background Pattern Removal, Blank Page Detection, Character Extraction, Cropping, Custom Rotation, De-Screen, De-Skew, Dither, Dropout Color (None / Red / Green / Blue / White / Saturation / Custom), Dynamic Threshold (iDTC), Edge Fill, Edge Repair, Error Diffusion, Front Back Merging, Halftone, Hole Punch Removal, Image Emphasis, Index Tab Cropping, Multi Image Output, SDTC, Split Image, sRGB Output, Static Threshold, Vertical Streaks Reduction.
Supported operating systems Windows® 11, Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008*20, MacOS, Linux
Software PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver, PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Network Setup Tool, ABBYY FineReader for ScanSnap™, Scanner Central Admin
CON-CLE-W72 F1 Scanner Cleaning Wipes (72 Pack)
CON-3810-200SK Includes 1x Pick Roller, 1x Brake Roller and 24x F1 Cleaning Wipes. Estimated Life: Up to 200K scans.
CON-3810-400K Includes 2x Pick Rollers and 2x Brake Rollers. Estimated Life: Up to 400K scans.
PA03360-0013 Document Carrier Sheets (5 Pack)
PA03810-D201 Post Imprinter(fi-819PRB)
PA43404-A665 PaperStream Capture Pro Workgroup Scan License PaperStream Logo
PA43404-A705 PaperStream Capture Pro QC & Index License PaperStream Logo
PA43404-A715 PaperStream Capture Pro File Import License PaperStream Logo
PA43404-A433 2D Barcode Module for PaperStream Capture PaperStream Logo
ENXC-HIGH-0001-OSC Easy NX Connect
VP-D005-0001 Kofax VRS Elite (Desktop)
